- Heat recovery (HRV) or humidity and heat recovery (ERV)
- HRV: Airflow up to 400 m3/h 111 l/s. Up to 170 m2 of floor space
- Constant flow technology
- Integrated CO2, VOC, PM, 4 air temperature and humidity sensors
- Installation: Wall or floor mounted
- Color: black, white


Airobot V4 ERV
Heat and humidity recovery model (ERV)
Airobot V4
Heat recovery model (HRV)
Airflow and heat exchanger
Airobot V4 ERV
Heat and humidity recovery model (ERV)
- Maximum airflow @100 Pa: 400 m3/h
- Maximum airflow @200 Pa: 400 m3/h
- Counterflow plate heat exchanger with heat- and humidity recovery
- Heat recovery efficiency ERV 80% (70% airflow, EN13141-7)
- Humidity recovery efficiency ERV 60% (70% airflow, EN13141-7)
Airobot V4
Heat recovery model (HRV)
- Maximum airflow @100 Pa: 400 m3/h
- Maximum airflow @200 Pa: 400 m3/h
- Counterflow plate heat exchanger with heat recovery.
- Heat recovery efficiency HRV: 90% (70% airflow, EN13141-7)
Technical
- Filters: Exhaust: ePM10 55% (M5), outdoor air: ePM1 55% (F7)
- Material: Expanded Polypropylene (EPP)
- Housing: Sheet metal, powder-coated white or black
- Ducting: 200 mm
- Condensate drain: HRV: 32 mm, water trap included. ERV: not equipped and required under normal conditions
- Power supply: 1~230 VAC, EU plug, maximum power 2.1 kW (10A circuit breaker)
- Fan power 2 x 83 W
- Pre-heater: Integrated, 0-100% controllable PTC heater, nominal power of pre-heater (varies depending on external temperature) kW: 1.5 kW
- Ventilated air -20 °C to +50 °C, maximum extract relative humidity 80%
- Ambient temperature +5 °C to +40 °C (HRV), -20 °C to +40 °C (ERV)
- Dimensions: 590 x 699 x 783 mm
- Weight: 50 kg
- Compliance: EN 60335-1, EN 61000-6-3, EN 61000-6-1, Ecodesign Directive 2009/125/EC
- Warranty 2-year standard, 2 additional years under special conditions
Fans
-
High-efficiency EC Fans
-
Constant flow technology by measuring fan pressure to maintain balanced airflow in all conditions automatically
- Speed continuously adjustable 0-100% in automatic mode, incrementally adjustable 0-10 in manual mode
Features
- Integrated sensors: CO2, VOC, 4 air temperature and humidity sensors
- Occupancy sensing and energy-saving mode – Airobot senses room occupancy by combining data from several sensors. It activates energy-saving mode automatically when necessary.
- Integrated frost protection (preheater), nominal power 1.5 kW, PTC 0-100% control
- Humidity detection – whenever the unit senses a sudden increase in humidity, it switches to a higher speed
- Automatic summer bypass
- Autonomous control – smart motor control ensures pleasant indoor air and maximum energy efficiency
- Overpressure mode – temporarily switches the unit to pressurize indoor air; can be automated with a pressure sensor to react to a stove hood, for example
- Boost mode – temporarily switches the unit to maximum speed to quickly ventilate the space
Control
-
iOS and Android mobile applications – access all features and settings, no wall-mounted remote needed (requires network connection)
-
Wall-mounted remote VE1: optional
-
Home automation: Modbus RTU and Modbus TCP (LAN only)
- Connectivity: LAN and Wi-Fi (2.4 GHz)

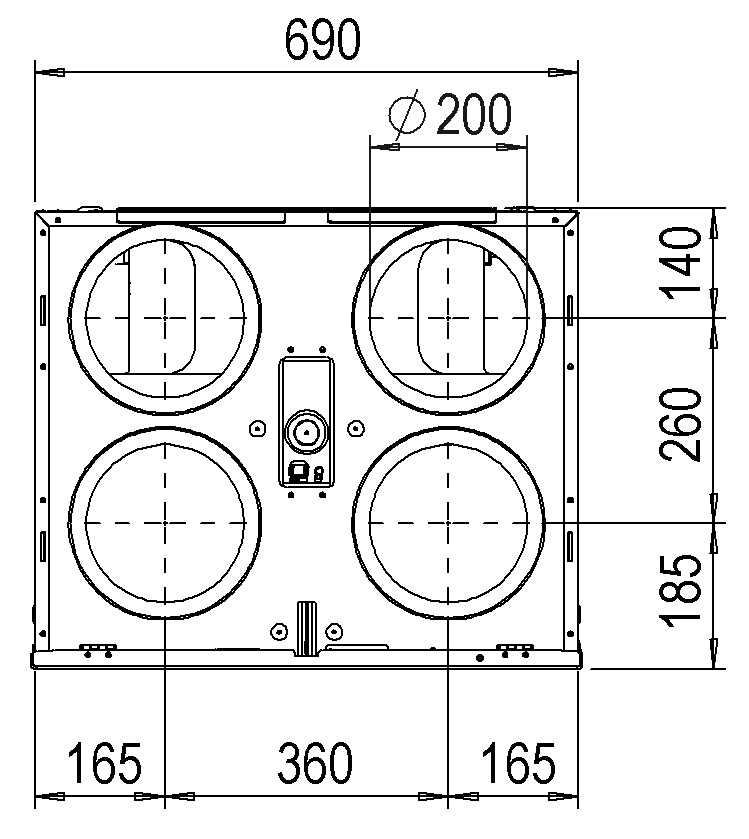

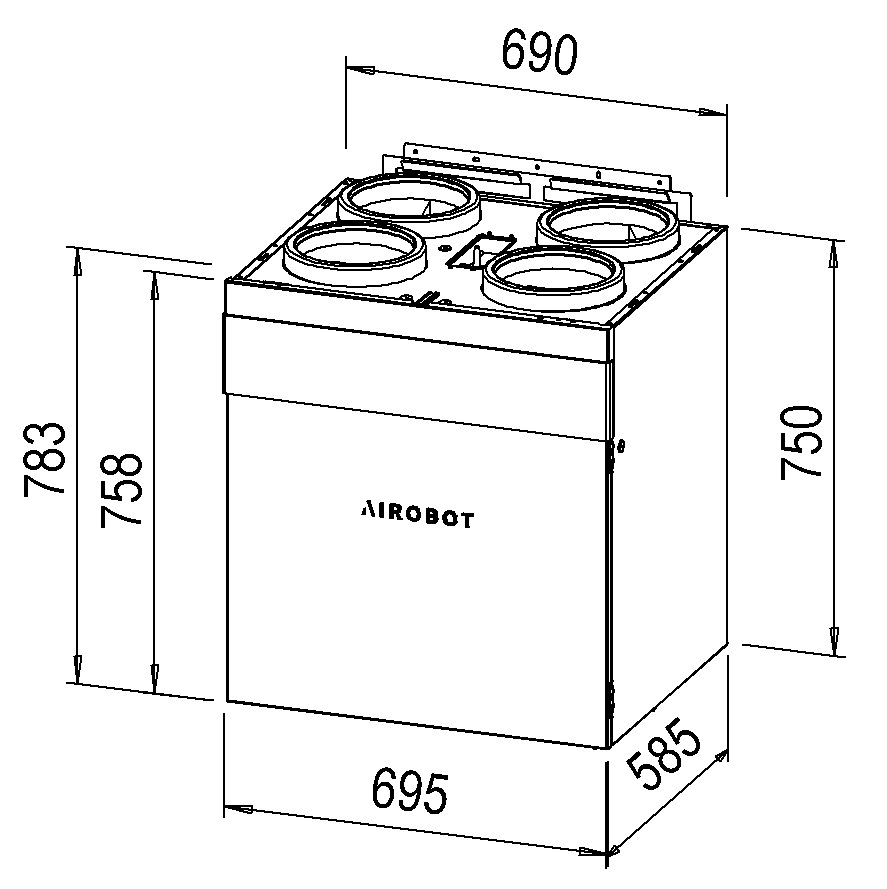

Dimensions
Ducts
Type R
Type L
Ducts explanation
SUP – Supply air to the room
ETA – Extract air from the room
ODA – Outside air
EHA – Exhaust air to outside
Files and manuals
Energy labels
Airobot V4
To be announced
Airobot V4 ERV
To be announced
Add ons
Add ons for Airobot Ventilation device
-
Smart thermostat 230V
Control your Airobot ventilation unit using this capacitive touchscreen controller
-

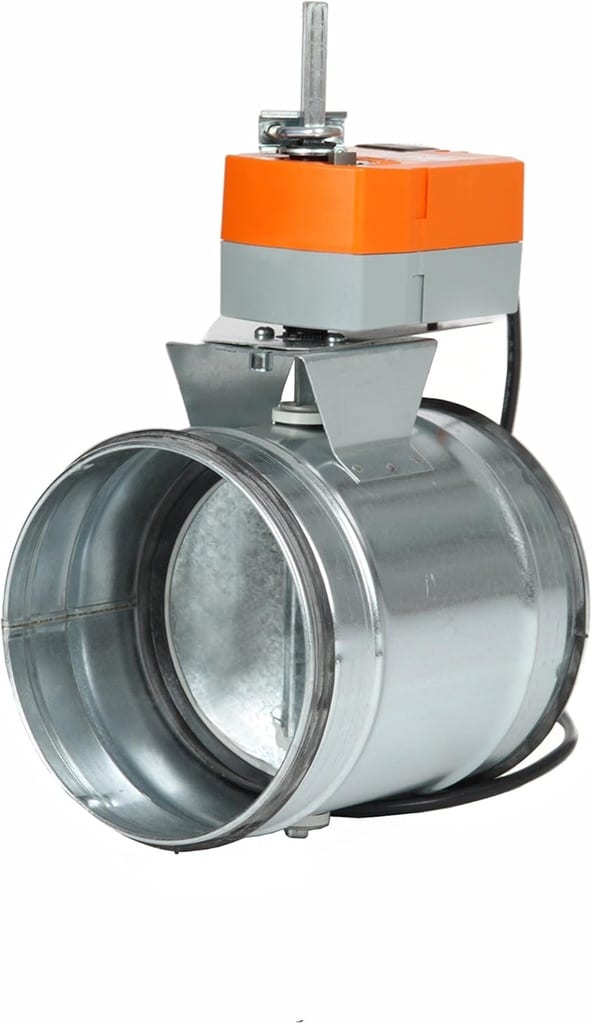

Spring-Return Dampers
