Technical specifications

Smart thermostat
 230V

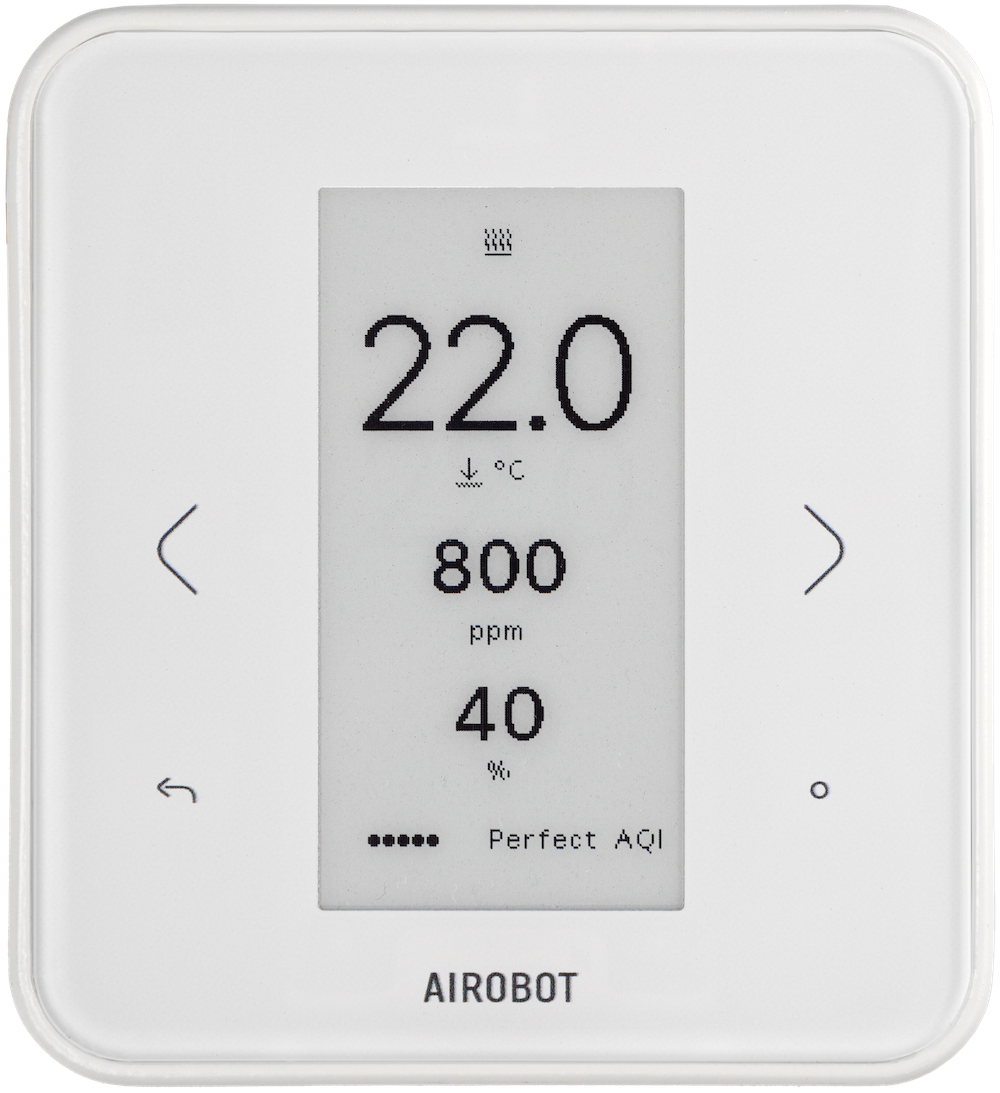

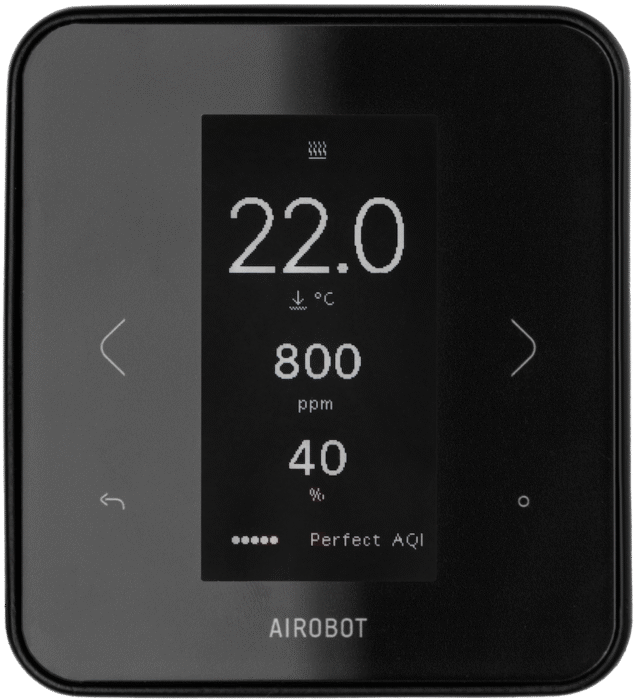

Airobot Thermostat

Airobot 230 V Smart Thermostat – intelligent comfort and energy savings, made in Europe.

  • Designed for underwater floor heating, this Wi-Fi-enabled thermostat lets you control temperatures room-by-room via mobile app—saving energy without sacrificing comfort.
  • Optional built-in CO₂ and humidity sensors improve indoor air quality for better sleep and focus.
  • With open smart home integration, precise ±0.2 °C accuracy, and lifelong software updates, it’s more than just a thermostat—it’s your home’s intelligent climate manager.

Applications

  • Water underfloor heating control
  • Control of electric floor heating with separate relay A-HC-R2416 (up to 16A)

Features

  • Air temperature and humidity measurement
  • CO2 carbon dioxide measurement (only for room sensors marked -AQ)
  • Heating control with air temperature or floor sensor
  • Home and away mode of operation: different temperature setting points can be set for each mode
  • Mobile application control with iOS and Android applications (network connection required)
  • Transmission of carbon dioxide CO2 readings to Airobot ventilation unit for air quality control of air flow
  • Possibility to calibrate the temperature sensor reading
  • Regular switching of the actuator – the function ensures that the valve of the underfloor heating manifold does not jam over time due to limescale. The thermostat closes or opens the actuator for 8minutes at least every 96 hours.

Technical

  • Maximum actuators: 5 – 8 pcs
  • Valve actuators: 230 V, normally closed, max. switching current 0.2 A
  • Power supply: 230 VAC 50/60 Hz, 2 × 1.5 mm²
  • Network connection: Wi-Fi 2.4 GHz
  • IP class: IP20
  • Building automation: Local API
  • Floor sensor: 10kΩ NTC (default), tax 0.75 mm2, future software update also additional options 6.8, 12, 15, 22, 33, 47 kΩ
  • Installation: EU wall box D68 mm, min depth 35 mm. Spacing between the fixing screws 60 mm
  • Temperature sensor: Digital, accuracy ±0.2 °C
  • Air humidity sensor: Digital, accuracy ±2%
  • Carbon dioxide (CO2) sensor: only on a model marked -AQ. Photoacoustic, accuracy ±50 ppm + 5% reading
  • Compliance: EN 60730-1, EN 60730-2-9, EN 61000-6-2, EN 61000-6-4
  • Weight: 113 g
  • Dimensions: 82 x 89 x 44 mm
  • Package weight: 168 g
  • Package dimensions: 14 x 12.5 x 5 cm

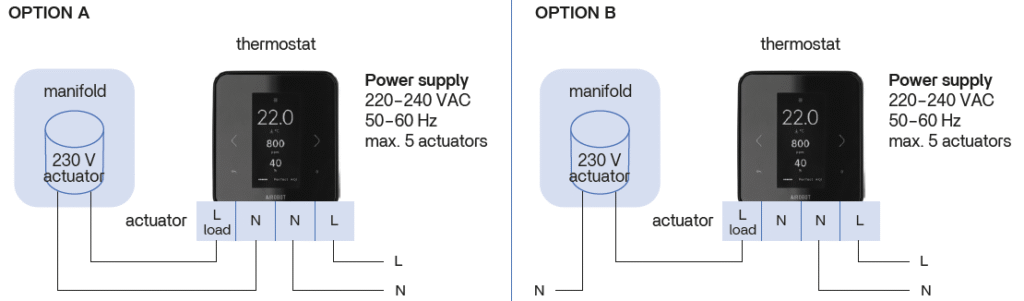

Connection diagram

You might also be interested in these products

  • Room sensor and controller 24V

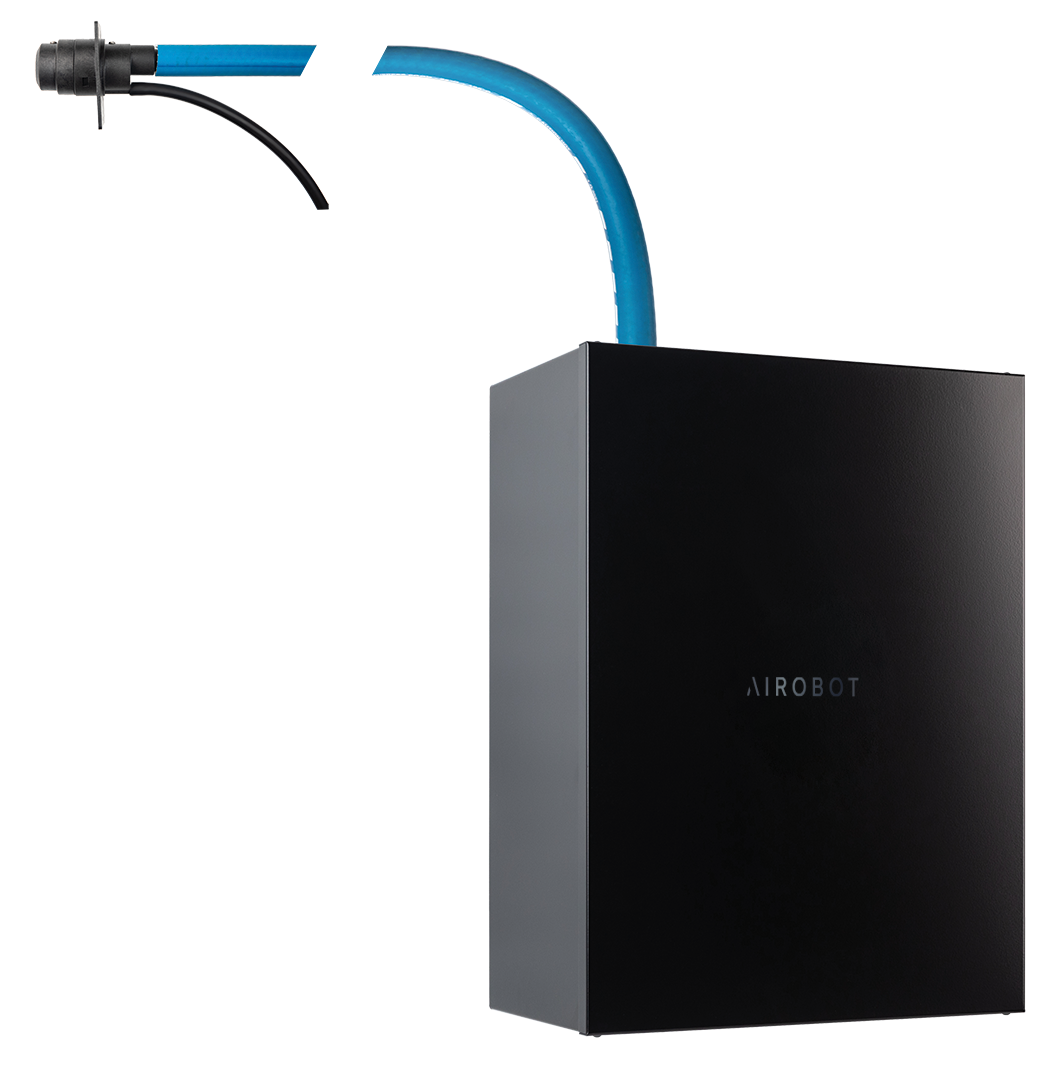

  • Perfect humidity, all year round
